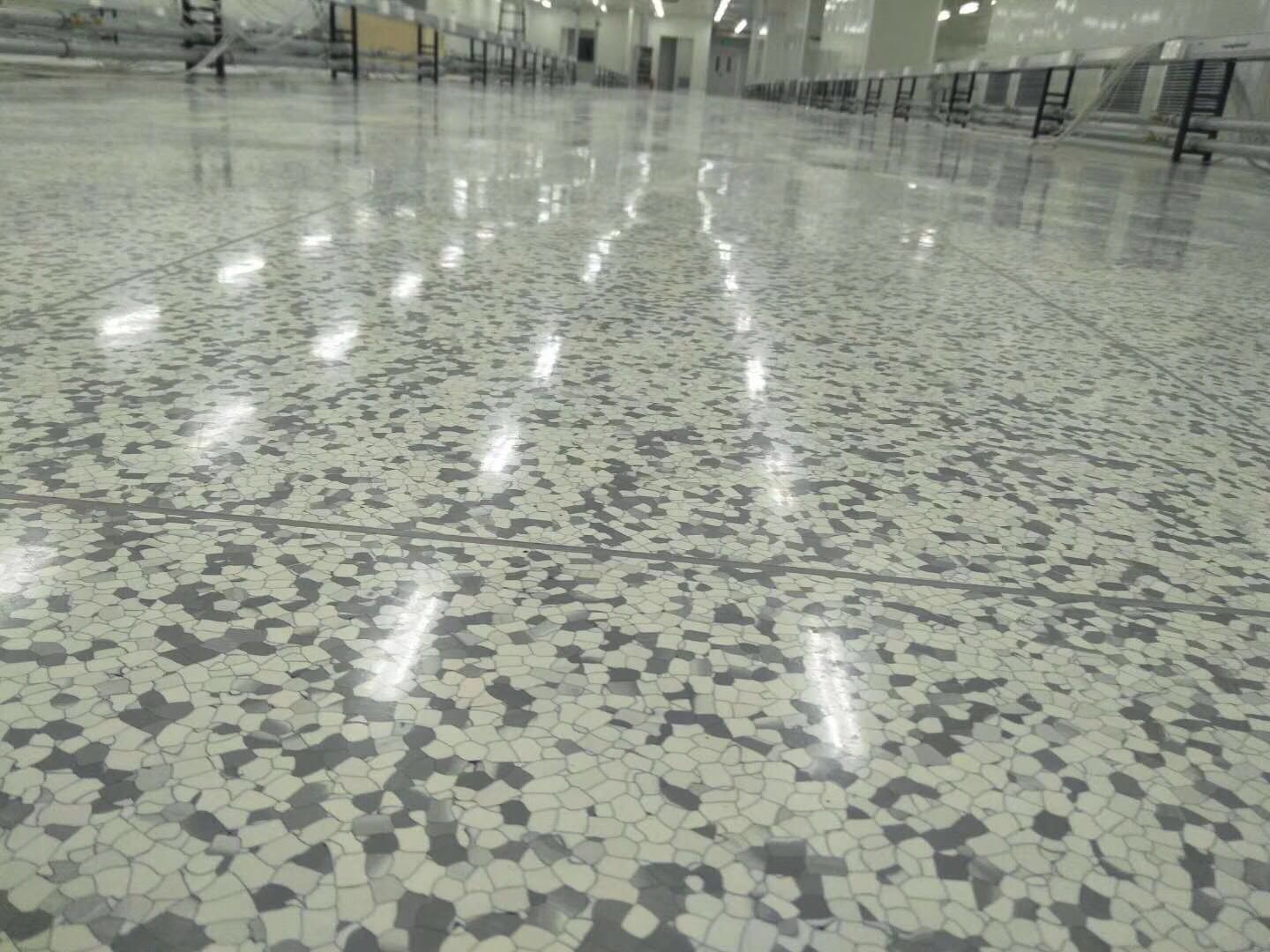

ESD vinyl tile utilizes an electrostatically conductive network, which is formed by the interface of plastic particles. It ensures permanent conductive properties of ESD tiles. The main materials of ESD tiles are polyvinyl chloride resin, conductive materials, stabilizers, plasticizers, pigments and Other auxiliary materials. The pattern of a ESD tile resembles a marble pattern, it has a good decorative effect.
Size: 600*600mm, 610*610mm, 900*900mm
Thickness: 2.0mm, 2.5mm, 3.0mm
Weight: 3980g/m2 (2.0mm Thickness)
Application
clean room, manufacturing & assembly workshops of electronic products, hospitals, data center & computer room
Features
Comply with all ESD control & vinyl materials’ standards
Assure a permanently conductive performance throughout the life of the product
Provide a porefree surface ensuring the highest hygiene properties
Create a unique dimensional stability and prevents shrinkage
Extremely low emissions and outgassing as the right choice for clean rooms
The surface can be fully repaired extending the useful life of the product
Provide excellent resistance to meet commercial and industrial usage
A good choice for raised access floors used in data centers and server rooms
Technical Support
| Item | Standard | Data | |
| Electrical Resistance(Ω) | SJ/T11236-2001 | Conductive EC | Dispassive SD |
|
| 2.5*104-1.0*106 | 1.0*106-109 |
| Dimensional(%) | ISO 23999:2018 | 0.05 |
|
| Statiing Voltage | SJ/T11236-2001 | 50V | 100V |
|
| Static Decay(s) | GJB2605-1996 | ≤2 |
|
| Wear Resistance | EN 660-2:1999 | Class P |
|
| Fire Resistance | EN13501-1:2007 | Bfl-s1 |
|
| Radiant Flux(W/cm2) | ASTM E648-2017 | ≥1.1 |
|
| Slip Resistance Wet | EN13893 | ≥0.3 |
|
| Residual Identation(mm) | ISO 24343-1:2002 | 0.01 |
|
| Color Fastness | ISO 105B 02 | ≥6 |
|
| Chemical Products Resistance | EN ISO 26987:2012 | OK |
|
| Migration of Certain Elements | EN 71-3:2013 | OK |
|
| RoHS Directive(%) | EN 62321 | 0.003 |
|
| TVOC After 28 Days(μg/m³) | ISO 16000-3 | <10 |
|
Looking for ideal Anti-Bacterial ESD Flooring Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Anti-Bacterial ESD Covering are quality guaranteed. We are China Origin Factory of Anti Bacterial
ESD Floor. If you have any question, please feel free to contact us.
